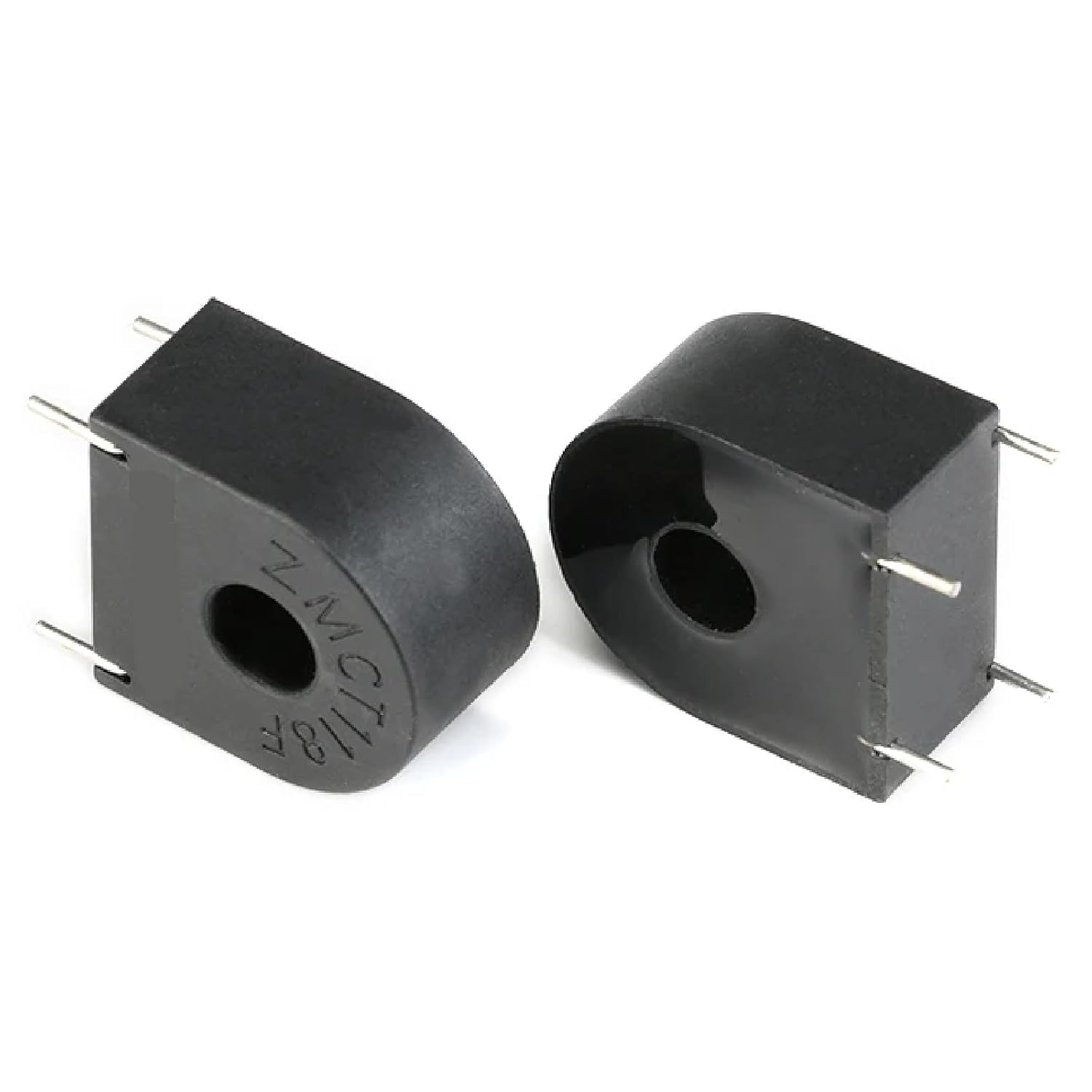

ZMCT118F Precision Miniature Current Transformer, 5A/5mA, PCB Mount Chip Type, High Linearity Isolated Sensing

The ZMCT118F current transformer is a high-precision sensing solution designed for accurate current measurements ranging from 5mA to 5A. This miniature PCB-mount transformer features a compact chip-type design that's ideal for installations where space is at a premium. Its excellent linearity and precise measurement capabilities make it perfect for power monitoring and control applications. The transformer provides galvanic isolation between primary and secondary circuits, offering enhanced safety in measurement setups. With its wide frequency response characteristics, this component can effectively handle various types of current signals. The device's small form factor and through-hole mounting design allow for straightforward PCB integration, while its robust construction ensures reliable performance in industrial and commercial applications. This current transformer is particularly suited for applications requiring accurate current sensing in confined spaces, such as smart meters, power supplies, and industrial control systems.

• PRECISION CURRENT SENSING: ZMCT118F transformer provides accurate measurement of AC currents ranging from 5mA to 5A with high linearity for reliable monitoring
• COMPACT PCB MOUNT DESIGN: Miniature chip-type construction with through-hole pins allows easy integration into space-constrained circuit boards and electronic assemblies
• ISOLATED MEASUREMENT: Provides electrical isolation between primary current path and secondary sensing circuit, enhancing safety and protecting sensitive monitoring equipment
• WIDE FREQUENCY RESPONSE: Suitable for measuring various AC signal types with consistent performance across a broad frequency range for versatile applications
• TECHNICAL SPECIFICATIONS: Current ratio of 1000:1 (5A/5mA), chip-type transformer construction, new condition, manufactured in Mainland China
