Waveshare Flexible RGB Full-Color LED Matrix Panel, 3mm Pitch, 64×64 Pixels, Adjustable Brightness and Bendable PCB, Compatible with Raspberry Pi 5/4B/3B/Zero/Zero W/Zero 2W/Pico/Pico W/Pico WH
$44.99
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by auralaserclinic.com
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
$44.99
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by auralaserclinic.com
Free 30-day returns Details
Product details
| Management number | 212250012 | Release Date | 2026/04/06 | List Price | $18.00 | Model Number | 212250012 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Flexible PCB material, can be gently bent and suitable for some application scenarios such as cylinders, spheres and other curved surface. *but it can not be excessive or repeated bending, otherwise, it is easy to cause damage!

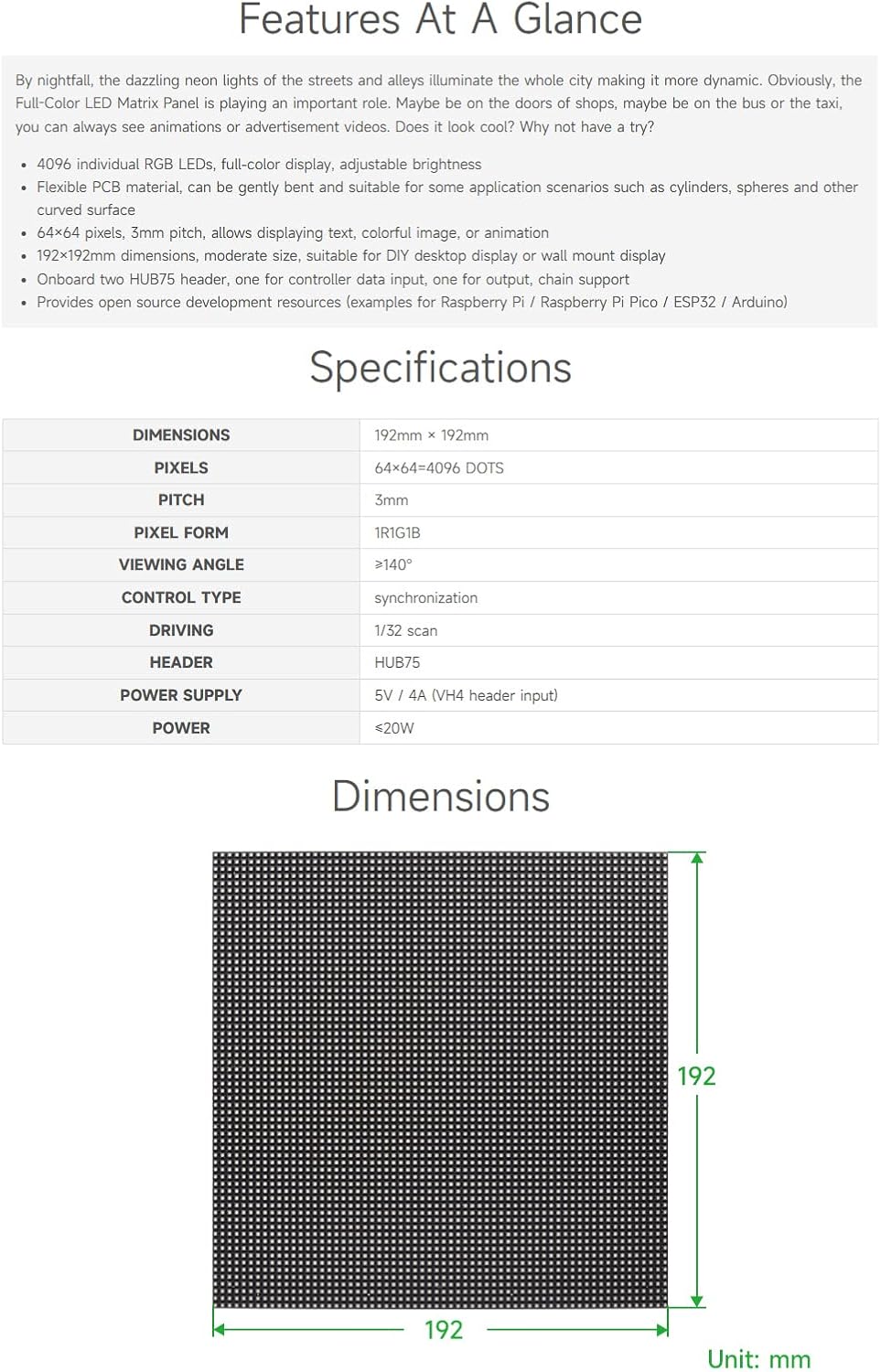

- 4096 individual RGB LEDs, full-color display, adjustable brightness. 64×64 pixels, 3mm pitch, allows displaying text, colorful image, or animation

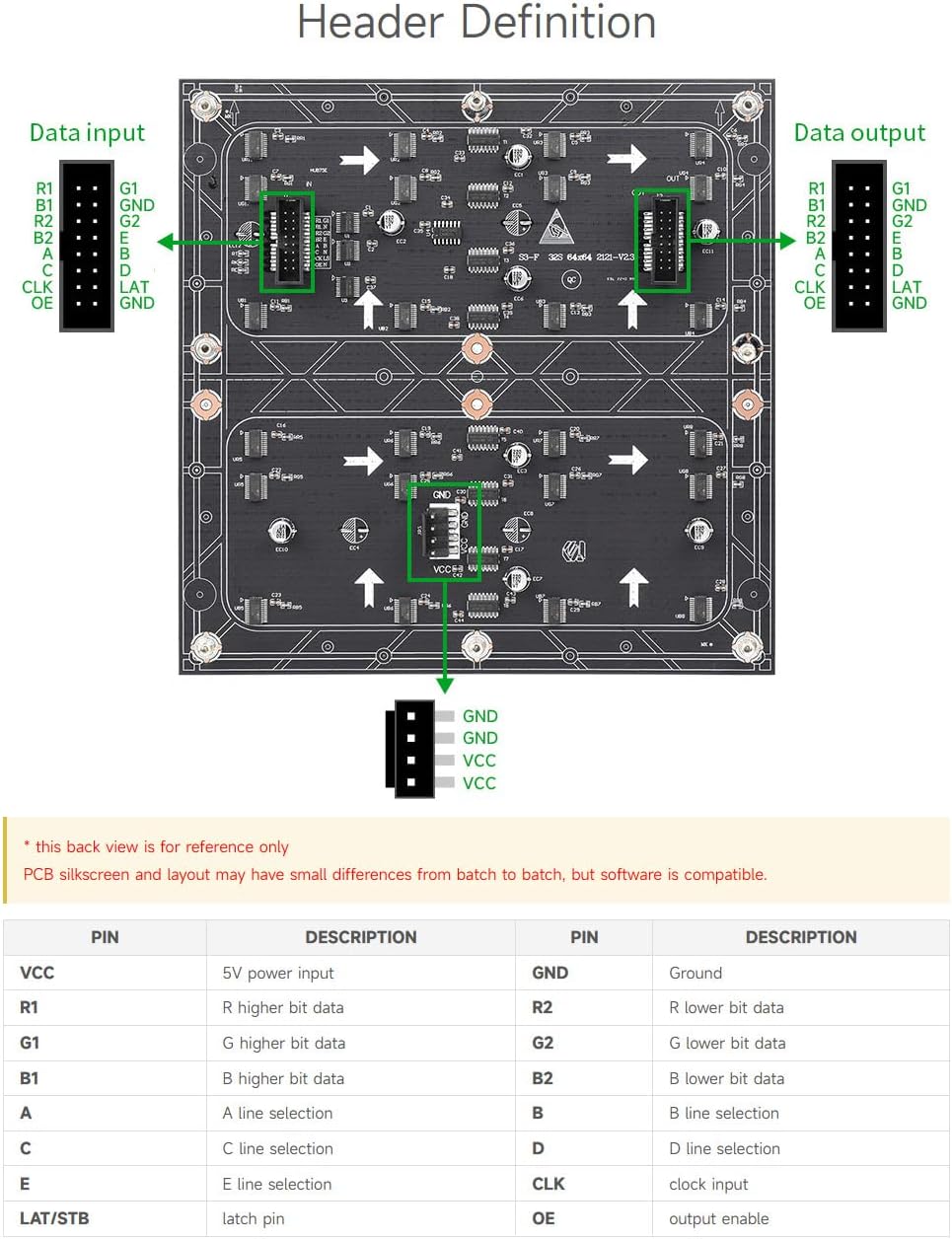

- 192×192mm dimensions, moderate size, suitable for DIY desktop display or wall mount display. Onboard two HUB75 header, one for controller data input, one for output, chain support
- Provides online open source development resources (examples for Raspberry Pi/Raspberry Pi Pico)
- Chainable Design: Multi LED Matrix Panel can be chained together to build a larger panel via HUB75 input/output header. Each RGB LED matrix panel requires a standalone 5V/4A or above power supply, when they're chained to display
| Brand | waveshare |
|---|---|
| Model Name | RGB-Matrix-P3-64x64 |
| Manufacturer | Waveshare |
| Model Number | RGB-Matrix-P3-64x64-F |
| Compatible Devices | Personal Computer |
| Compatible Processors | ARM Cortex-A72, ARM Cortex-A53, ARM Cortex-A7, ARM Cortex-A57, ARM Cortex-A9, ARM Cortex-A8, ARM Cortex-A15, ARM Cortex-A17, ARM Cortex-A55, ARM Cortex-A76, ARM Cortex-A77, ARM Cortex-X1, ARM Cortex-X2, ARM Cortex-X3, ARM Neoverse N1, ARM Neoverse V1, ARM Neoverse E1, ARM Neoverse N2, ARM Neoverse V2, ARM Neoverse E2, ARM Neoverse N1, ARM Neoverse V1, ARM Neoverse E1, ARM Neoverse N2, ARM Neoverse V2, ARM Neoverse E2 |
| Main Power Connector Type | 24-Pin |
| System Bus Standard Supported | SATA 3 |
