TOOLTOP ET13S Thermal Camera 192 * 192 Thermal Camera Multimeter 9999 Counts Voltage Duty Cycle Diode Ohm Test

Thermal Imaging parameters Model: ET13S Sensor: Vanadium oxide(VOx) Image capture frequency: 20Hz Thermal imaging pixel:192*192 Display image resolution:240*240 Field of view (Fov): 50.0(H) × 50(V)/72.1(D) Emissivity: 0.1-0.99 is adjustable and 0.95 is the default Measurement temperature range: -20℃ ~+550℃ Mode: Automatic gain Color board: Iron Red, Rainbow, Fusion, White Heat, White Heat Highlights Temperature measurement error:±2℃ or ±2% Display temperature accuracy: 0.1℃/0.1F Multimeter Parameters DC highest input voltage: 1000V AC highest input voltage: 750V Resistance highest measurement resistance: 99.99MΩ Capacitance highest measurement capacity: 99.99mF Duty cycle measurement range: 0.1% ~ 99.9% Diode measurement range: 0V ~ 3V On-off test maximum resistance: 999.9Ω Display number:9999 counts, updated about 3 times per second Other parameters of the device Display Screen: 2.8 inches, 320 * 480 resolution Touch Screen: Resistive touch screen USB interface: Type-C USB Storage capacity: 3.5MB image format: BMP file Battery: Built-in lithium battery Storage temperature: 20~60℃ (-4~140F) Working temperature: 0～50℃ (32～122F) Working humidity: <85%RH (Non-condensing) Product size: 134 mm * 69 mm * 25 mm Product weight 130g (not including accessories)

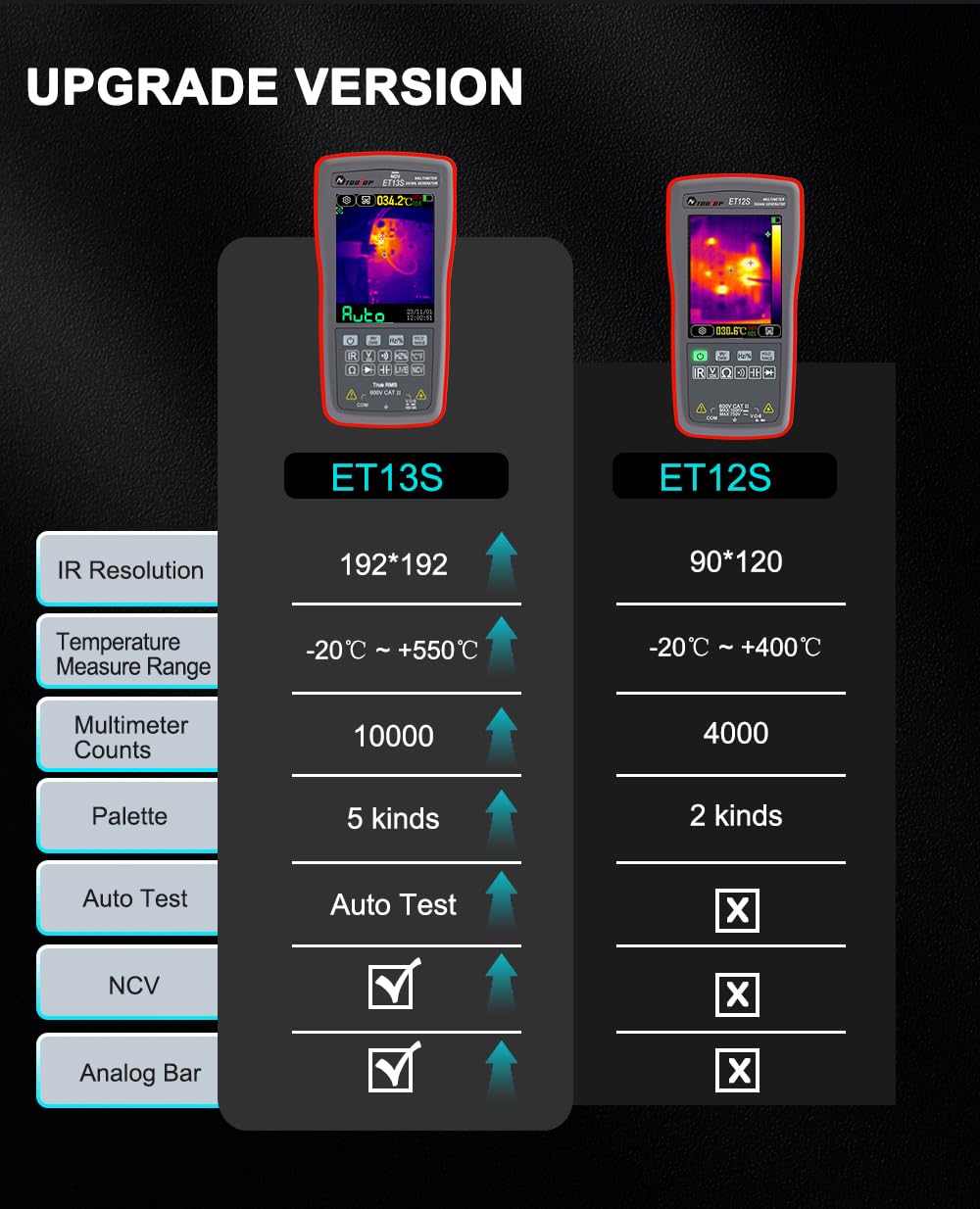

• 【High Resolution image】: Upgraded thermal imaging sensor with thermal imaging pixels of 192 * 192px and image capture frequency of 20Hz, providing clearer and more detailed thermal images.
• 【Multiple color palettes】: Supports 5 types of color palettes, providing multiple imaging effects, allowing you to choose the most suitable display effect according to your actual needs.
• 【Touch screen】: The device adopts a 2.8-inch resistive LCD touch screen with a resolution of 320 × 480, more convenient to operate (please use nail touch screen)
• 【Multimeter data chart recording function】: Real time recording and saving of multimeter measurement data through charts, making it convenient for you to analyze and save data.
• 【Data transmission & PC software analysis 】:Under USB mode, it is possible to transfer locally saved thermal imaging images and the multimeter mensurement result recording by data chart .And displayed on the computer through PC software.
