Skystars F722 FPV Flight Controller Stack and 45A 4IN1 ESC 3-6S 30.5mm for FPV RC Drone Freestyle Racing Quadcopter
Product details
| Management number | 213547251 | Release Date | 2026/04/12 | List Price | $36.00 | Model Number | 213547251 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

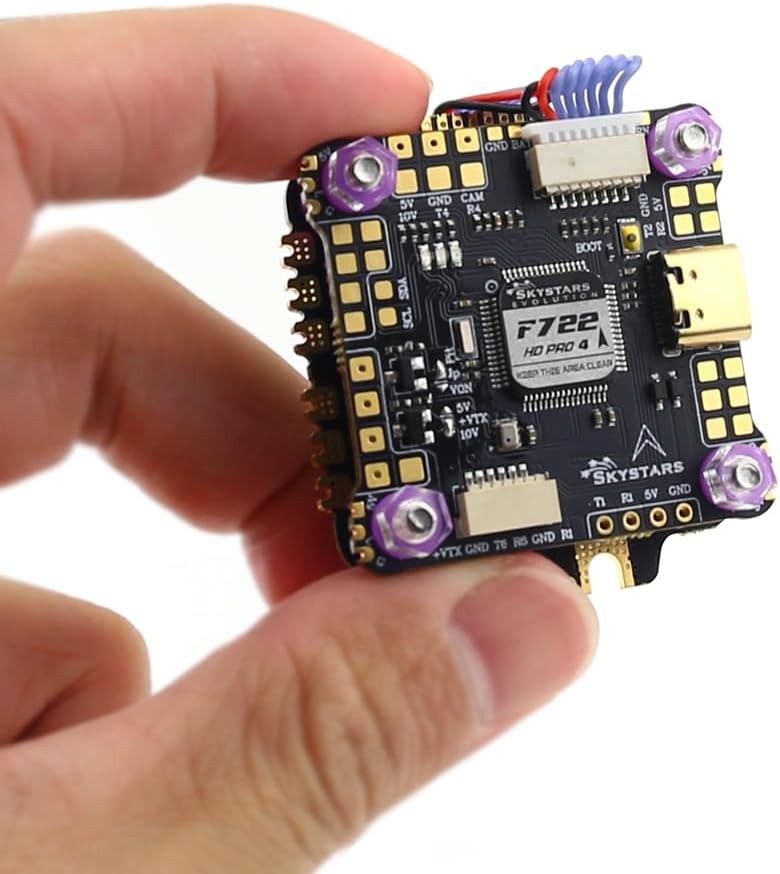

FC Specifications:MCU: STM32F722RGT6 216MHzGyroscope: BMI270Baro:Bmp280OSD: Betaflight SPI OSD DJI HD OSD(UART6)Black box: 16MB6x Uarts: UART 1/2/3/4/5/64x PWM outputs1x I2C3x LEDs for FC STATUS (Blue, Green) and 3.3V indicator(Red)USB Type-C(USB2.0)1x JST-SH1.0_8pin connector (Gnd/Vbat/S1/S2/S3/S4/Rx3/Curr)1x JST-SH1.0_6pin connector (R1/G/R6/T6/G/10V)VTX 10V/Vbat filtered power ON/OFF switchDJI FPV OSD is supported by any spare UARTLED: 4 LED independent pads, support WS2812 programming lamp output.
- Support Sbus, crsf, ibus, SBUS, XBUS, support 3.3v Spektrum satellite receiver, The default receiver input is UART1(You can solder ELRS RX on UART1), F7 has a built-in inverter, which can actually be installed in any spare UART.
- Support 128K Dshot1200, Dshot600, Dshot300, Dshot150, Oneshot125, Multishot, PWM control signal
- BEC: 5V/10V 3A max dual-channel BEC supports stable power supply on the sky side of DJI
- Installation size: 30.5mm × 30.5mm The installation hole is M4 and supports shock column installation
- If there are any question or need help , pls feel free to contact us , we will always here help you out within 24 hours
| UPC | 736961513241 |
|---|---|
| Color | black |
| Brand Name | SoloGood |
| Model Name | F722 |
| Item Weight | 0.1 Pounds |
| Part Number | F722001 |
| Skill Level | Intermediate" or "Advanced |
| Control Type | Remote Control |
| Manufacturer | Skystars,Flight Controller Stack |
| Special Features | DJI HD OSD, customizable LED lighting, enhanced power distribution |
| Included Components | Remote Control, USB Type-C Cable |
| Age Range Description | Adult |
| Are batteries included | No |
| Connectivity Technology | USB |
| Includes Rechargeable Battery | No |
