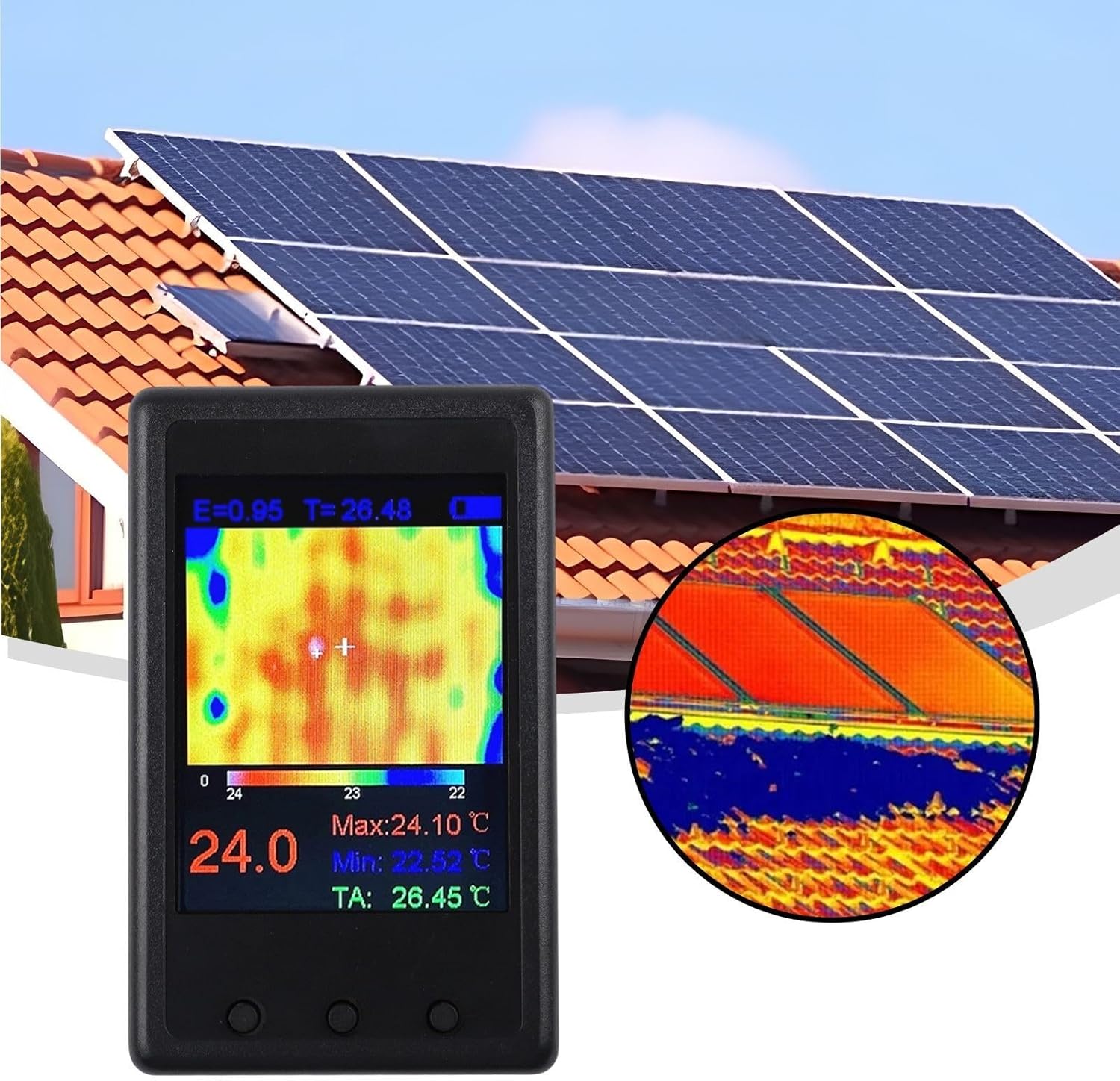

Handheld Thermal Imager 2.4 Inch LCD Infrared Camera with -40°C to +300°C Range, MLX90640 Sensor, for PCB Component Heat Detection, Automotive and Electrical Switch

Product description Features:* Equipped with a USB data transfer interface. The new firmware automatically outputs data to the USB port by default.* Supports direct connection to computer software for image display (baud rate 115200), and can also use the corresponding serial port debugging assistant.* Features temperature-dependent screen color adjustment, allowing you to set different colors for different temperatures.* The infrared camera has a screenshot function and can pause the image for analysis.* Can be used for heat detection of PCB components, automotive parts, electrical switches, etc.Specifications:Part Name: Infrared Thermal ImagerMaterial: ABSColor: As shownSensor Resolution: 24 x 32 dotsPower Supply: Micro-USB port, voltage not exceeding 5VBattery Type: Lithium battery (built-in)Battery Capacity: 1000 mAhResponse Frequency: 8 HzTarget Temperature Measurement Range: -40°C to +300°COperating Environment: 0-50°CEmissivity: Adjustable from 0.01 to 1.00Sensor Probe Angle of View: MLX90640ESF-BAB probe defaults to 35 x 55 degreesScreen Size: 2.4-inch LCD, 320 x 240 resolution, displays maximum, minimum, and center temperatures, and displays coordinates of each point. Measurement accuracy: ±2°C (test conditions: ambient temperature 25°C, measuring object: boiling water 100°C)Applications: PCB component heating temperature measurement, floor heating temperature measurement, automotive component temperature measurement, appliance switch temperature measurement, air conditioner temperature measurement, microwave oven temperature measurementPackage Contents:1 x Thermal Imager1 x User Manual Manufacturer Contact Information no

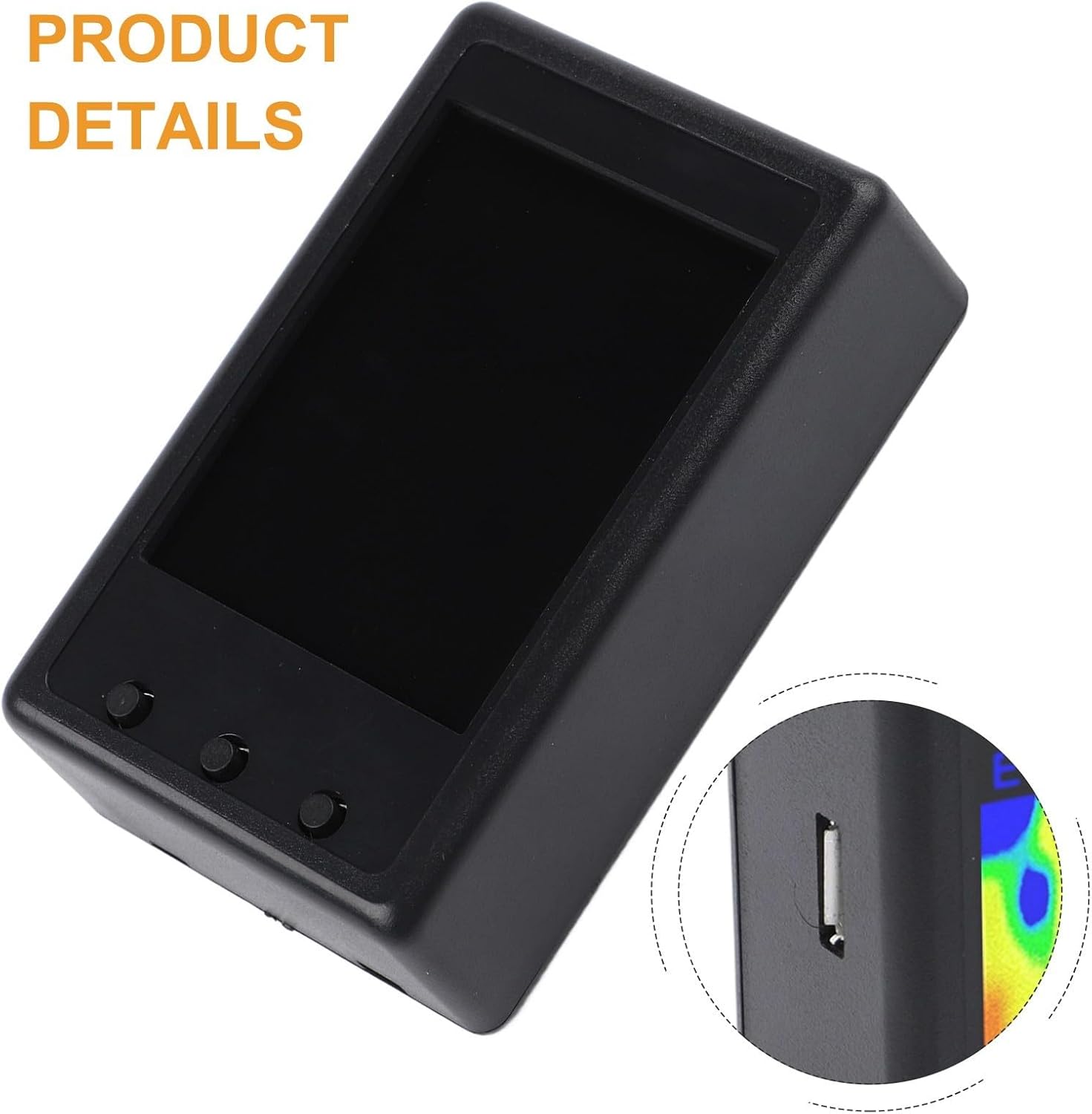

• [COMPACT HANDHELD DESIGN] Lightweight ABS body and 4 inch LCD make this infrared imaging camera easy to carry for field inspections, factory troubleshooting, automotive maintenance and home appliance checks.
• [MEASUREMENT ] Displays maximum, minimum and center temperatures with coordinate readouts; measurement accuracy is plus or minus 2°C under test conditions, aiding fast and reliable diagnosis.
• [CONNECTIVITY FOR DATA WORKFLOW] Supports USB data transfer that auto-outputs to the USB port and direct PC connection at 115200 baud for real-time monitoring or serial debugging when integrating with software.
• [POWER & SENSOR PERFORMANCE] Built-in 1000 mAh lithium battery, USB powered under 5V, and MLX90640-based 24 x 32 sensor with 8 Hz response deliver dependable thermal imaging for routine inspections.
• [ INSPECTION FEATURES] Adjustable emissivity from 01 to 1.00, operating range 0 to 50°C, and a 40°C to 300°C target range make it suitable for PCB component heating checks, floor heating, automotive parts and appliance temperature measurement.
