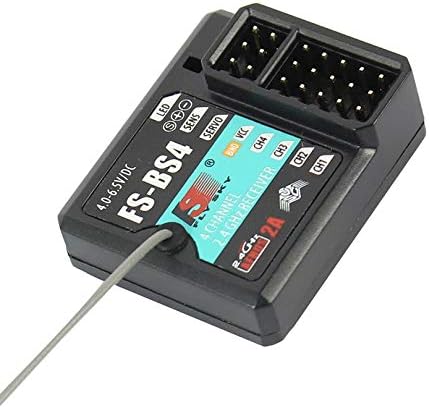

Flysky FS-BS3 FS-BS4 FS-BS6 Receiver with Gyro Stabilization System for Flysky FS-IT4S / FS-GT5 Remote Control Accessory (FS-BS4)

OVERVIEW: FlySky FS-BS4, a gyro-embeded receiver, has 4 channels. In addition to the regular functions, it can also be used with a transmitter with S.V.C. (Smart Vehicle Control) function to realize a smart control over the car and make sure the car travels in the expected direction even on bumpy/slippery surfaces, or during cornering. Specification: Brand Name: FlySky Item Name: FS-BS4 Receiver Dimensions: 35.4 * 29.6 * 13mm Weight: 20g PWM channels: 4CH Wireless frequency: 2.4GHz Wireless protocol: AFHDS 2A Scope: 100 - 300m (ground) Antenna type: single antenna (150mm) Energy: 4.0-6.5V RSSI: Supported Data port: PWM / PPM / i.bus / s.bus Temperature scope: -10 ℃ — + 60 ℃ Humidity scope: 20% -95% Online Update: Yes Certification: CE Binding: 1. Turn on the transmitter, check the RF standard and if necessary, change it to [AFDHS 2A 2-way]. For detailed instructions, refer to the transmitter's manual. 2. Set the transmitter to bind mode. For detailed instructions, refer to the transmitter's manual. 3. Make sure the receiver is powered off. 4. Connect the bind cable to the BIND/VCC port on the receiver. Then connect the energy to any other ports on the receiver. The red indicator starts to flash rapidly, indicating that the receiver is in bind mode. 5. Wait till the indicator stops flashing, which means binding is finished. 6. Disconnect the bind cable and energy from the receiver. Then connect the energy to the BIND/VCC port. 7. Check if all the servos work as expected. If anything does not work as expected, restart this procedure from the beginning. Package Included: 1 x FS-BS4 Receiver
