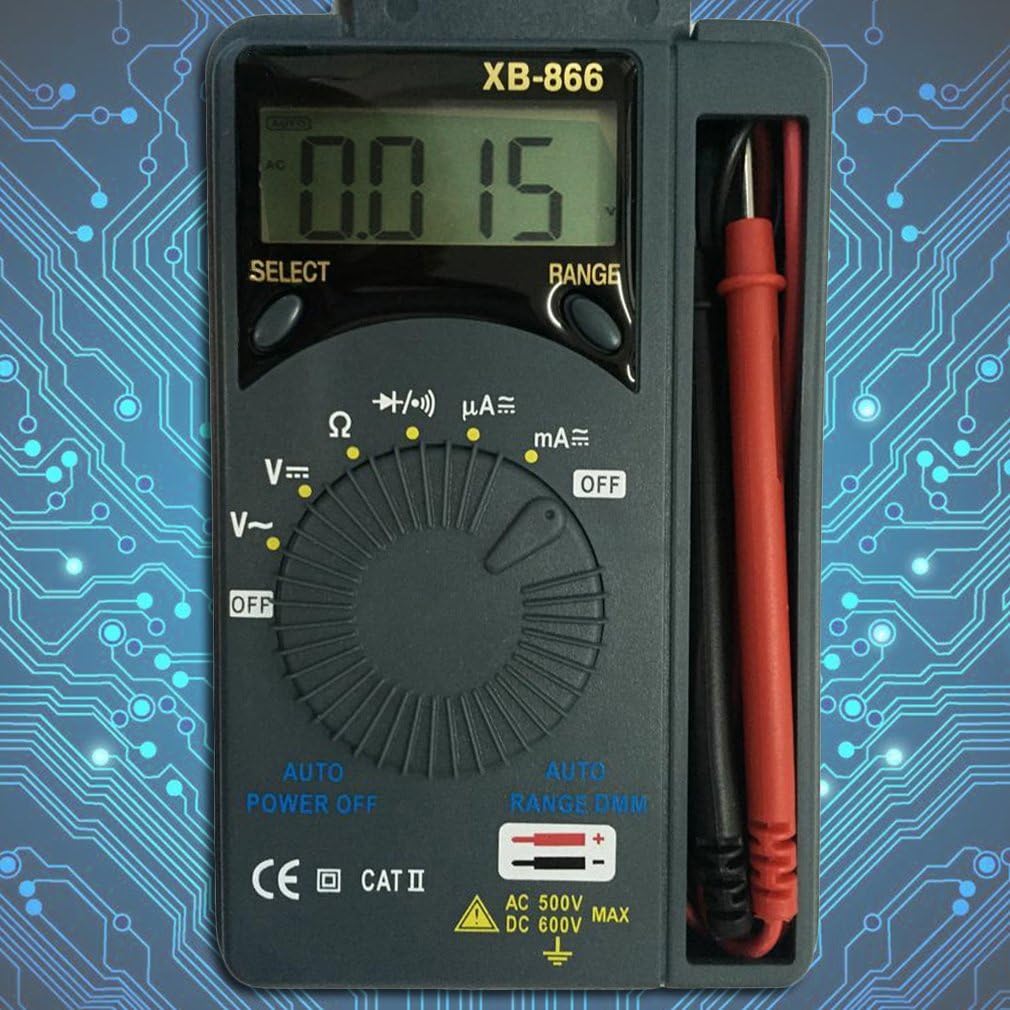

ELEOPTION Digital Multimeter, Auto Ranging Pocket Digital Multimeter Digital Multi Tester Amp/Ohm/Volt Meter/Diode and Continuity Test

Specification: 1.Body Size: 115*70*20mm 2.Accuacy is specified for a period of year after calibration and at 18° Cto 28° C(64° F to 82° F) with relative humidity to 75% 3.It includes 7 function with 25 rangs 4.Max. Voltage Between Terminals And Earth Ground; 600V DC or 500V AC 5.Display: LCD 6.MAX. Show Value: 1999 counts max Polarity Indication:"-" indicates negative polarity 7.Overrange Indication: Display" OL" or "-OL" 8.Sampling Time: approx.0.4second Until showing of function and electrical capacity 9.Auto power supply: 15min 10.Power Supply: 1.5V*2, it is not included 11.Temperature, Factor less than 0.1*Accuracy/° C 12.Operating Temperature: 0° Cto 40° C (32°F to 104 °F) 13.Storage Temperature: 0° Cto 50° C(10°F to 122 °F) 14.Circumstance Temperature: 23±5° CRelative Humidity: less than 70% 15.Auto Range: DC Voltage: 200mV, 2V, 20V, 200V, 600V AC Voltage: 2V, 20V, 200V, 500V (Frequency Range: 40~400Hz) DC Current: 200uA, 2000uA, 20mA, 200mA AC Current: (Take it only as reference) 200uA(±5% of rdg), 2000uA (±3% of rdg), 20mA (±5% of rdg), 200mA (±3% of rdg) (Frequency Range: 40~400Hz) Package Included: 1 x Mini LCD Digital Multimeter

• Digital multimeter, Designed in hand held small size and light weight. Easy to carry when outside work.
• Palm multimeter, pocket multimeter, compact portable durable， Multimeter Over load protection， Use the PT protection circuit for Resistance and frequency measurement
• Easy-to-read large backlight LCD to improve visibility, it gives you fast accurate readings with data hold function.
• Over range protection for all ranges. Low battery indication. Automatic polarity indication.
• Able to test AC/DC Voltage, AC/DC Current, Resistance, Live Line, Diode,Troide, Capacitance, Frequency and more， Sampling times at about 2~3 times/sec， Maximum display 4000 counts
