Bingfu Waterproof Active GPS Navigation Antenna Adhesive Mount SMA Male GPS Antenna with 15cm 6 inch RG178 Coaxial Pigtail Cable for GPS Module Receiver Tracking

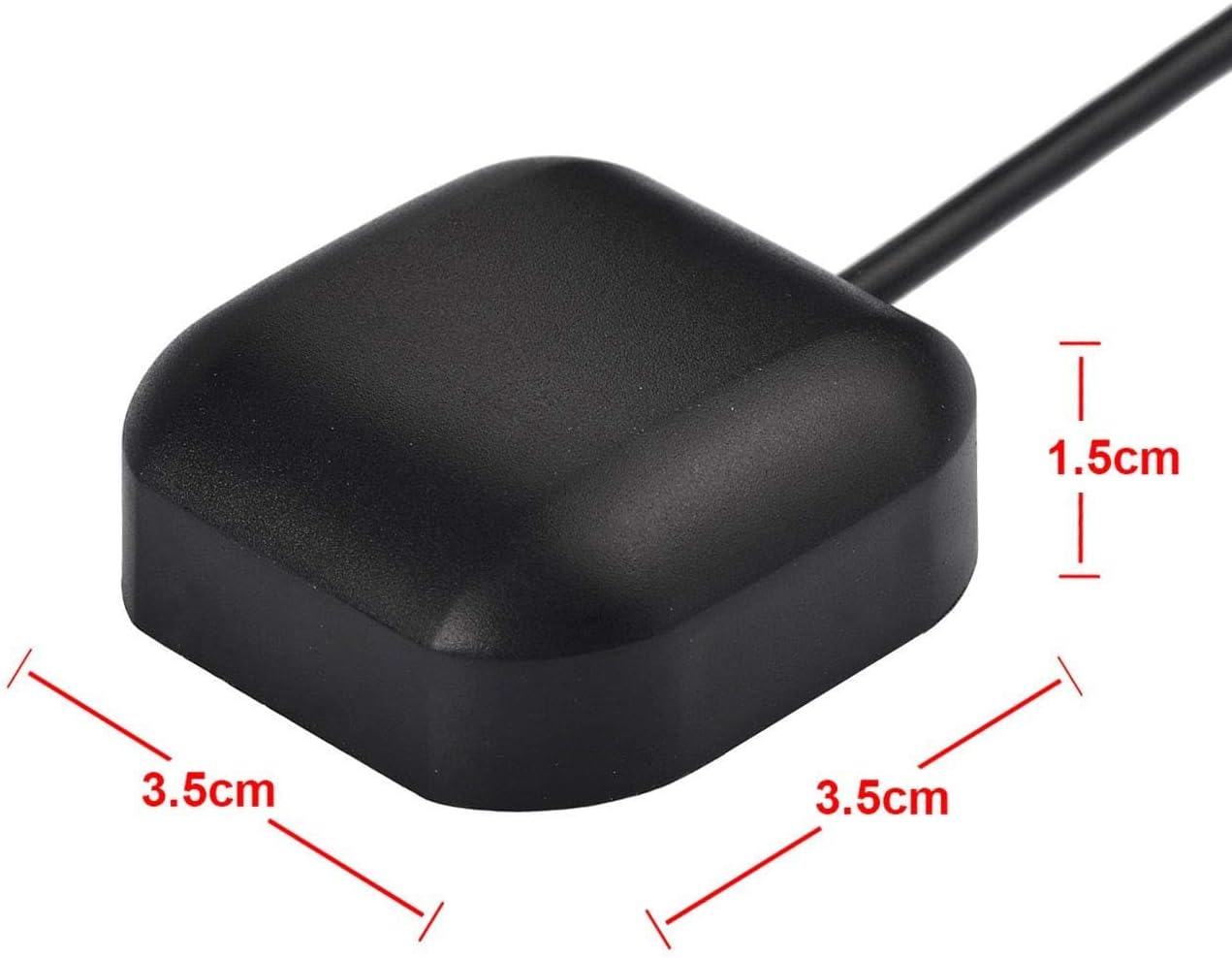

Specifications: 1. Dielectric Antenna Center Frequency: 1575.42MHz ±3MHz V.S.W.R: 2:01 Bandwidth: ±5 MHz Impedance: 50 Peak Gain: > 3dBic based on 7x7cm ground plane Gain Coverage: > -4dBic at -90 <0 <90 (over 75 volume) Polarization: RHCP 2. LNA/Filter LNA Gain Without cable: 28dB Typical Noise Figure: 2.0dB Filter Out Band Attenuation: (f0=1575.42MHz) 7dB Min f0+/-20MHz; 20dB Min f0+/-50MHz; 30dB Min f0+/-100MHz V.S.W.R: <2.0 DC Voltage: 3V to 5V DC current: 7-10MA 3. Overall Frequency Range: 1575/1609MHz V.S.W.R: 2.0 Gain: 30±3dBic Impedance: 50 Ohm 3. Mechanical Weight: 60 gram Size: 35x30x15mm Cable: RG174 Length: 3m Connector: SMA Male Plug Connector 15cm 6 inch RG178 Coaxial Pigtail Cable Mounting: Magnet base Housing: Black 4. Environmental Working Temp: -40 to 85℃ Waterproof test: 4 hours under the tap, let the water rush over the housing; Vibration: Sine sweep 1g (0-p) 10 ~ 50 ~ 10Hz each axis Humidity: 95% ~ 100% R Package List: 1 x Antenna (As the Picture Shown)

• Frequency: GPS 1575.42MHz; LNA Gain: 28dB; Power Supply DC Voltage: 3V to 5V; Power Supply DC Current: 10mA Max; Feature: Magnetic Mounting, Adhesive Mount;
• Cable Length: 3m; Connector: SMA Male Connector; 15cm 6 inch RG178 Coaxial Pigtail Cable;
• Package List: 1 x Antenna, 1 x Coaxial Pigtail Cable, 1 x Double-sided Adhesive Piece (As the Picture Shown)
• Compatible with: Vehicle Telematics; 4G LTE GPS Tracker Locator; Vehicle Real Time Tracking Mobile DVR Video Recorder; Bus Truck RV Van Security Alarm System; Vehicle Amateur Radio Mobile Radio;
• Compatible with: Internet Of Things IOT; Machine-to-Machine M2M; 4G LTE Industrial Gateway Modular Modem Mobile Router; 4G LTE Cellular RTU DTU Terminal; Trail Camera;
