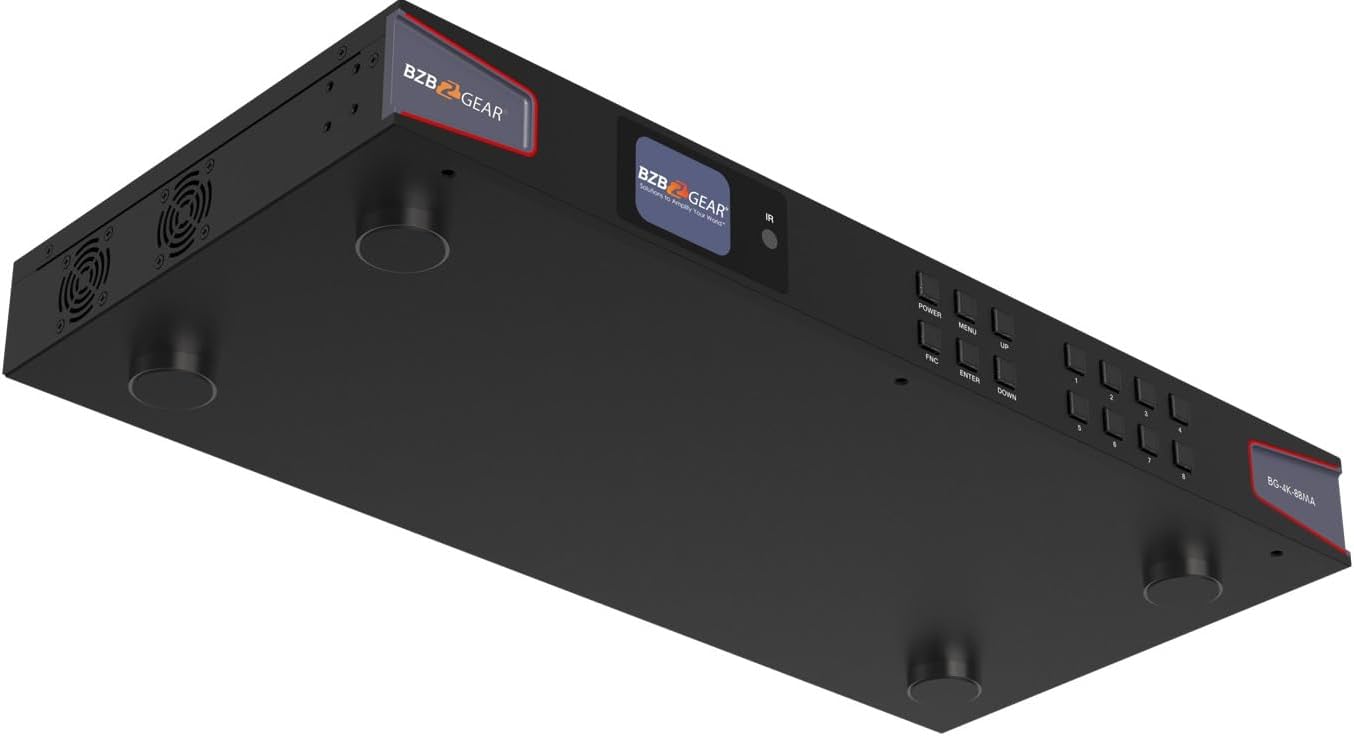

8x8 4K UHD HDMI 2.0 Matrix Switcher with Audio De-Embedding and Independent Routing (4K60-4:4:4 and HDR Support)

With eight HDMI 2.0 inputs and eight HDMI 2.0 outputs, the BG-4K-88MA 4K HDMI matrix switch allows users to share up to eight HDMI sources with up to eight displays. Perfect for when you need to change multiple sources to show on various displays or even select just one source to show on all displays with the press of a button. Audio can also be independently routed. Professional-grade picture and audio quality are achieved with support for 4K resolutions and various high-quality audio formats. Connectivity and Quality: The BG-4K-88MA supports high resolutions up to 4K@60Hz 4:4:4 with HDR. With 18 Gbps of uncompressed bandwidth, HDMI signals are routed with no loss of quality. All HDMI ports on this matrix are HDCP 2.2 compliant. This device is also equipped with auto-downscaling on all outputs, ensuring compatibility with legacy displays. Additionally, the BG-4K-88MA supports Digital S/PDIF and Balanced audio output formats. Control: The BG-4K-88MA offers multiple control methods including front panel controls, RS-232, or TCP/IP (Web GUI). In addition to a full-featured web interface, the BG-4K-88MA includes control software that can be operated via the RS-232 connection. These interfaces allow users to adjust advanced features like EDID management, mapping, and network settings. Audio Matrixing: This unit features advanced audio matrixing capabilities. Audio can be independently routed separately from the video signals. This feature provides flexible audio management options for a variety of installation scenarios.

• HDCP Compliant - HDMI 2.0 (18Gbps) HDCP 2.2 (and all earlier versions supported).
• 4K Resolution - Up to 4K@60Hz 4:4:4 HDR support.
• Audio Matrixing - The audio can be independently routed.
• Control Options - Control via front panel, RS-232, and TCP/IP (Web GUI).
• EDID Management - Seamless scaling for the best results. HDR Support - HDR, HDR10, DolbyVision pass-through.
