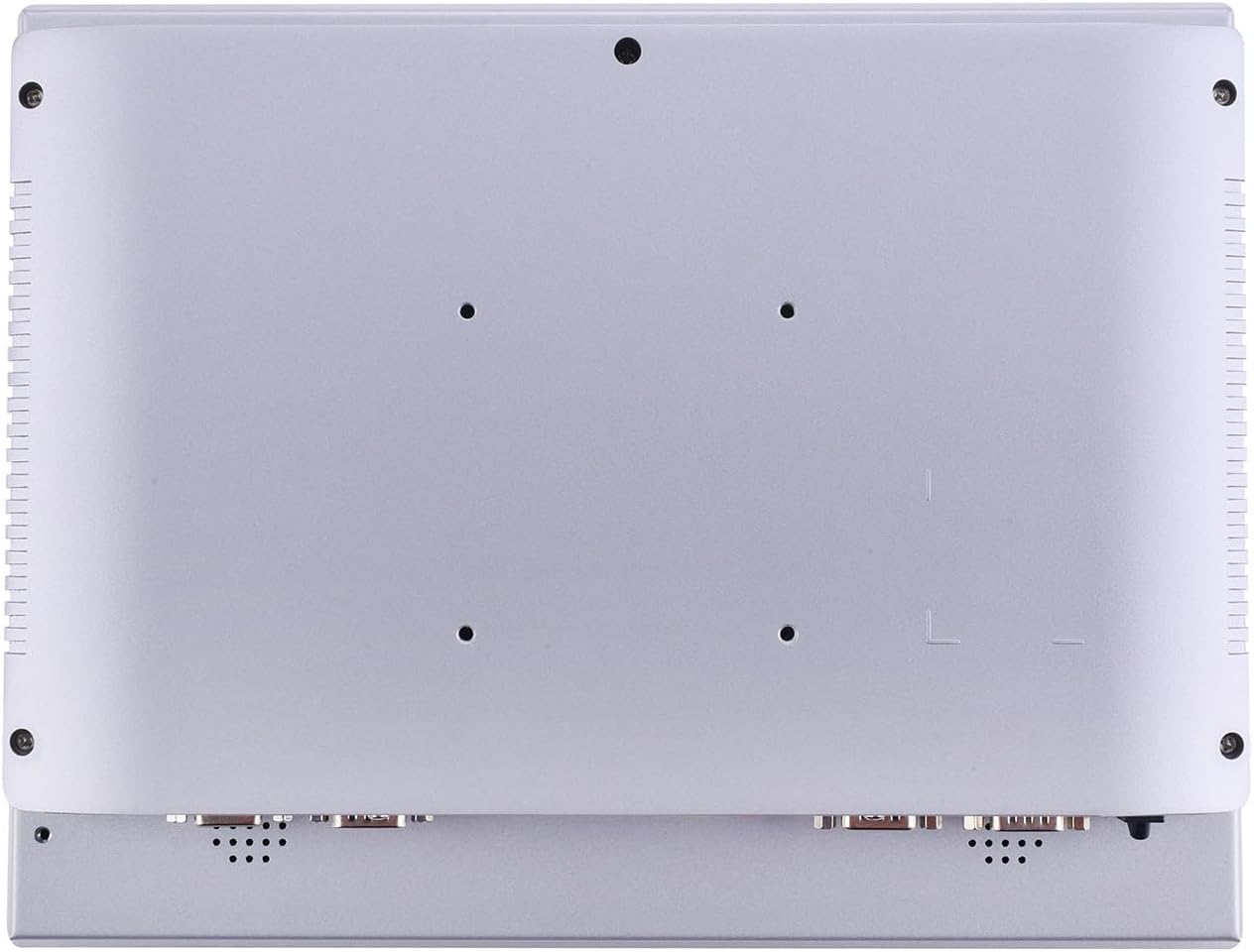

12.1" TFT LED IP65 Industrial Panel PC, 10-Point Projected Capacitive Touch Screen, 6th Core I5, PW24, VGA, HDMI, 2 x LAN, 2 x COM, 0 RAM, 0 Storage, Barebone No System
Product details
| Management number | 212363043 | Release Date | 2026/04/06 | List Price | $36.00 | Model Number | 212363043 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Please note: This is a barebone only. A system memory, a storage drive and an operating system are needed to complete this system Model Number: HUNSN PW24 Panel: 12.1" TFT LED panel, front panel protection IP65 CPU: Intel I5 Gen. 6th CPU, ship one of them Memory: 2 x SODIMM DDR3L 1333/1600, max. to 16GB RAM Storage: 1 x mSATA SSD, 1 x 2.5" SATA SSD/HDD I/O: 12V DC, HDMI, VGA, 2 x USB3.0, 2 x USB2.0, 2 x LAN, AUDIO-IN&OUT, 2 x COM, POWER_SW Expansion: Mini PCIE slot for WiFi/4G, with sim slot Watchdog Timer: 255 Cooling System: Aluminum alloy, fanless Dimension: 306.8 x 235.12 x 54.5mm Weight: 3.1kgs Opening Hole: 301 x 229mm Resolution: 1024 x 768 Perspective: 80L, 80R, 80T, 80B Brightness: 350cd/m2 Contrast: 1000 Backlight Life: 30,000 hours min. Touch Screen: 10-point projected capacitive touch screen Transmittance: 86±5% at 550 nm wavelength Durability Touch Count: 200 million times Installation: Embedded recommended/Wallmounted/Desktop/Cantilevered etc Operating Temperature: 0 ~ 50°C with SSD, 0 ~ 40°C with HDD Storage Temperature: -20 ℃ ~ 60 ℃ Operating Humidity: 10% ~ 95% @ 40 ℃ without condensation EMC/Safety: CCC Power Supply: DC100-240V AC/50-60Hz, 12V Packing List: HUNSN PW24 Panel PC, Power Supply, Power Cord, Embedded Buckle Kits, Warranty Card System Support: Windows 10/11, Linux Ubuntu etc
- 12.1 inch tft led industrial grade touch panel pc, front panel protection IP65, 10-point projected capacitive touch screen, typical 1024 x 768 resolution, powered by intel gen 6th core i5 processor, applicable to a wide range of industrial applications, 7 x 24 hours of stable work
- Please note, this is a barebone only. A system memory, a storage drive and an operating system are needed to complete this system
- Aluminum alloy fanless passive cooling design, silent solution that’s ultra energy-efficient
- HUNSN PW24 designed with 12v dc, hdmi, vga, 2 x usb3.0, 2 x usb2.0, 2 x lan, audio-in&out, 2 x com, power_sw, industrial aesthetic design and reasonable interface layout, support automatically power on after power failure, with mounting embedded buckle kits
- Size at 306.8 x 235.12 x 54.5mm, 3.1kgs, 12v power supply, with power cord, make sure to use a big brand memory and ssd/hdd with quality assurance
| Brand | ANDAQI |
|---|---|
| Color | silver |
| RAM Type | SODIMM |
| Model Name | PW |
| Resolution | 1024 x 768 |
| Style Name | Gen 6th Core I5 |
| Item Weight | 3.1 Kilograms |
| Screen Size | 12.1 Inches |
| Aspect Ratio | 4:3 |
| Display Type | LCD |
| Manufacturer | Shen Zhen Shi An Da Qi Ke Ji You Xian Gong Si |
| Model Number | PW24 |
| BuiltIn Media | Power Supply, Power Cord, Embedded Buckle Kits, Warranty Card |
| Cooling Method | Fanless |
| Item Type Name | HMI |
| Processor Brand | Intel |
| Processor Count | 2 |
| Processor Speed | 2 GHz |
| Total Usb Ports | 4 |
| Video Processor | Intel |
| CPU Model Number | Gen 6th Core I5 |
| Processor Series | Intel Core i5 |
| Processor Socket | FCBGA1356 |
| Native Resolution | 1024x768 |
| Compatible Devices | Camera,Desktop,Gaming Console,Laptop,Smartphone,Speaker,Tablet |
| Hardware Interface | VGA |
| Additional Features | Touchscreen, IP65 Rating |
| Hard Disk Interface | Solid State |
| Graphics Coprocessor | Intel HD Graphics 520 |
| Graphics Description | Integrated |
| HumanInterface Input | Touch Pad |
| Hard Disk Description | SSD |
| RAM Memory Technology | DDR3L |
| Memory Slots Available | 2 |
| Connectivity Technology | Powerline |
| Graphics Card Interface | Integrated |
| Memory Storage Capacity | 16 GB |
| Ram Memory Maximum Size | 16 GB |
| Specific Uses For Product | Everyday Use |
| Display Resolution Maximum | 1024 x 768 Pixels |
| Total Number of HDMI Ports | 1 |
| Number of Component Outputs | 2 |
