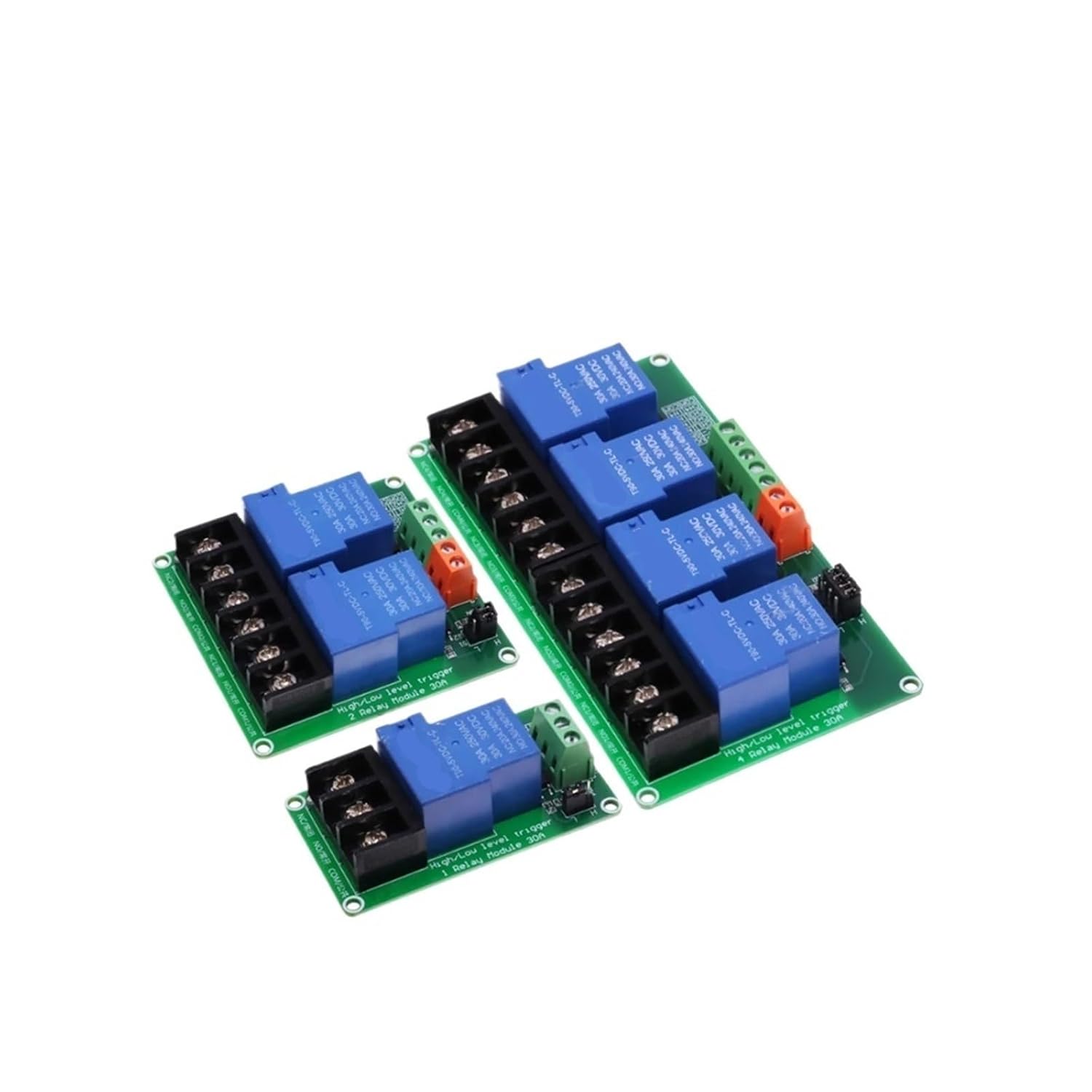

1 Way 2 4 Channel Relay Module 30A with Optocoupler Isolation 5V 12V 24V Supports High and Low Triger Trigger Relays Board 1Pcs(12V,2 Way Relay)

Relays1 Way 2 4 Channel Relay Module 30A With Optocoupler Isolation 5V 12V 24V Supports High and Low Triger Trigger Relays BoardDescription:1, the module uses genuine high quality 30A relay, normally open interface maximum load: AC 250V / 30A, DC 30V / 30A;2, the use of SMD optocoupler isolation, strong drive capability, stable performance; trigger current 5mA;3, the module voltage 5V, 12V, 24V to choose from;4, the module can be set by jumper high or low trigger5, user-friendly interface design, all interfaces can be directly connected through the terminal leads, very convenient6, Module Size: 72mm * 40mm * 24mm (L * W * H)7, product weight: 46g;8, with four fixed bolt holes, holes 3.1mm, spacing 44.5mm * 27.5mmParameters:Relay version: 5VQuiescent current: 5mAMaximum current: 190mATrigger current: 2-4mARelay version: 12VQuiescent current: 5mAMaximum current: 80mATrigger current: 2-4mARelay version: 24VQuiescent current: 5mAMaximum current: 50mATrigger current: 2-4mA
